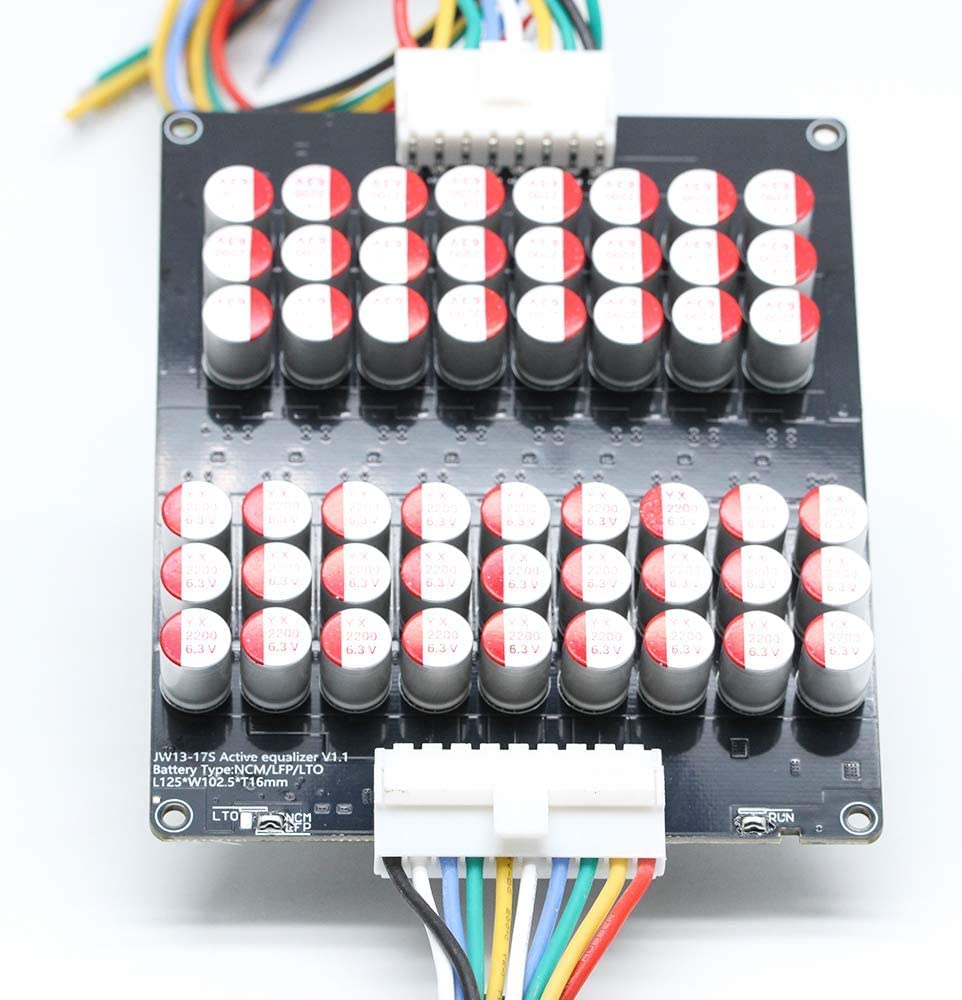

17S 5A Li-ion Lifepo4 LTO Litio Activo Ecualizador Equilibrador Condensador 13S-17S

- 【CAP13-17SBALANER】☆☆☆17S 5A Li-ion Lifepo4 LTO ecualizador activo de litio condensador 13S-17S☆☆☆
- 【Design compact】✔Application Battery Type: Li-ion/Lifepo4/LTO✔Opetating voltage range: Li-ion/Lifepo4: 2.7-4.2v LTO:1.8-4.2V ✔Voltage eualization accuracy: 17mV (typical value)
- 【Easy operation】✔Balanced Principle: The patented equalization architecture capacitive mode, the whole battery group simultaneously participates in the energy transfer active equalization✔Equalizing Current: 0.08V differential pressure 1A equalization current, the differential pressure is directly proportional to the equalization current
- 【High performance】✔the maximum allowable working current is 6.0A✔Undervoltage protection sleep voltage: Li-ion/Lifepo4<2.7; LTO<1.8✔Static Operating Current: 17mA✔Size(mm) L*W*T: 115*102.5*16
- 【Descripcion】✔Opeating Ambient Temperature: -10 degree -- +60 degree✔Manner of working: No external power supply, relying on the battery internal energy transfer to achieve the balance of the whole group.
